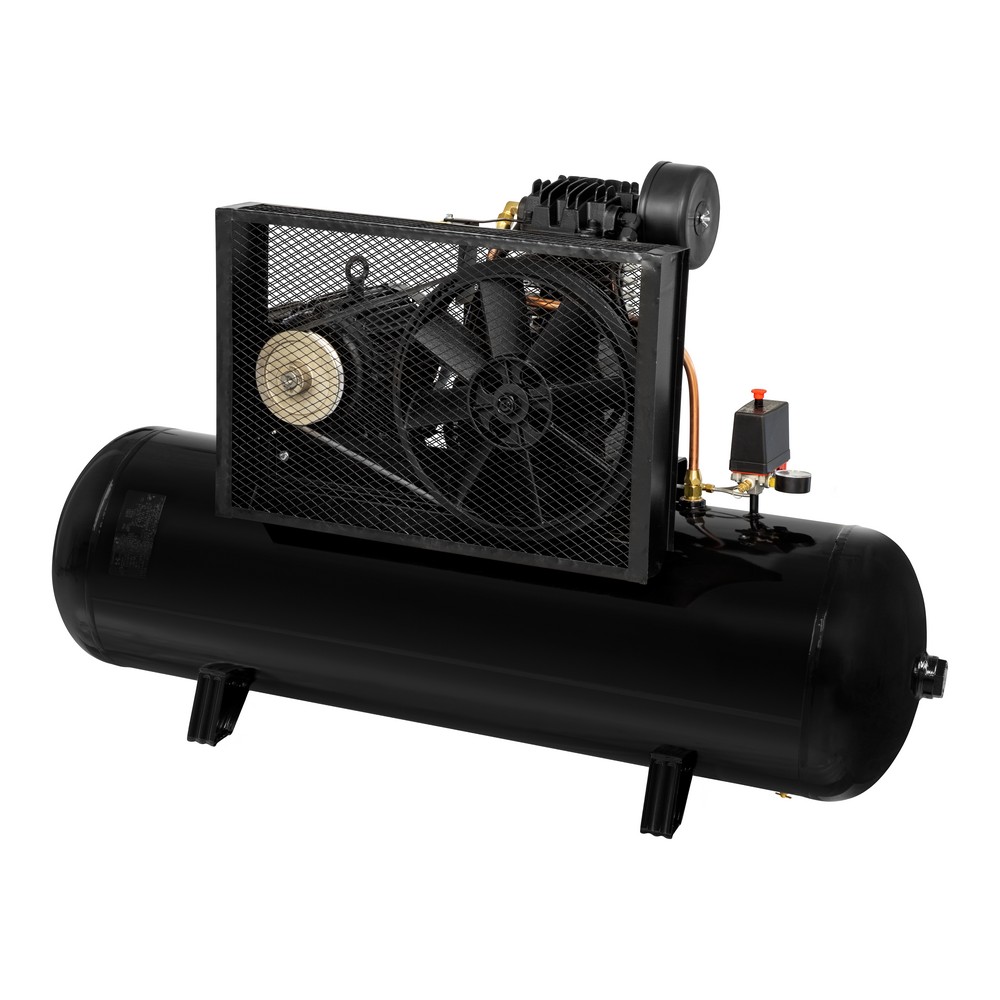

Bravo CSL 20BR/200 Air Compressor - 20 SCFM 200 liters 5,5 hp (Argentina)
Description
The Bravo Line is synonymous with robustness and technology to help you achieve the highest performance results. Its 140 psi pressure provides more power for technical and constant work. The cast iron pump ensures durability for professional and industrial applications.
Schulz
Code: 931.8215-0/A
Phase - Voltage
Frequency
Product codes
Technical File
Product description
Downloads
Technical File
Technical File
Technical File
Phase - Voltage
Three-phase - 380 V
Operation Regime
Intermittent
Engine Type
Closed
Power
5.5 hp - 4 kW
Air Displacement
20 SCFM - 566 L/min
Maximum Operating Pressure
175 psi - 12 bar
Minimum Operating Pressure
135 psi - 9.3 bar
Frequency
50 Hz
Product's Rotation
970 rpm
Number of Stages
2
Number of Pistons
2-L
Air Tank Volume
45.6 gallons
Lubricant Oil Volume
0.26 gallons
Lubricated or Oil Less
Lubricated
Air Discharge Connection
1/2" BSP
Length of Packaged Product
1,650.00 mm
Width of Packaged Product
600.00 mm
Height of Packaged Product
1,165.00 mm
Gross weight
199.50 kg
Net Weight
172.70 kg
Product description
Product description
The Bravo Line is synonymous with robustness and technology to help you achieve the highest performance results. Its 140 psi pressure provides more power for technical and constant work. The cast iron pump ensures durability for professional and industrial applications.
