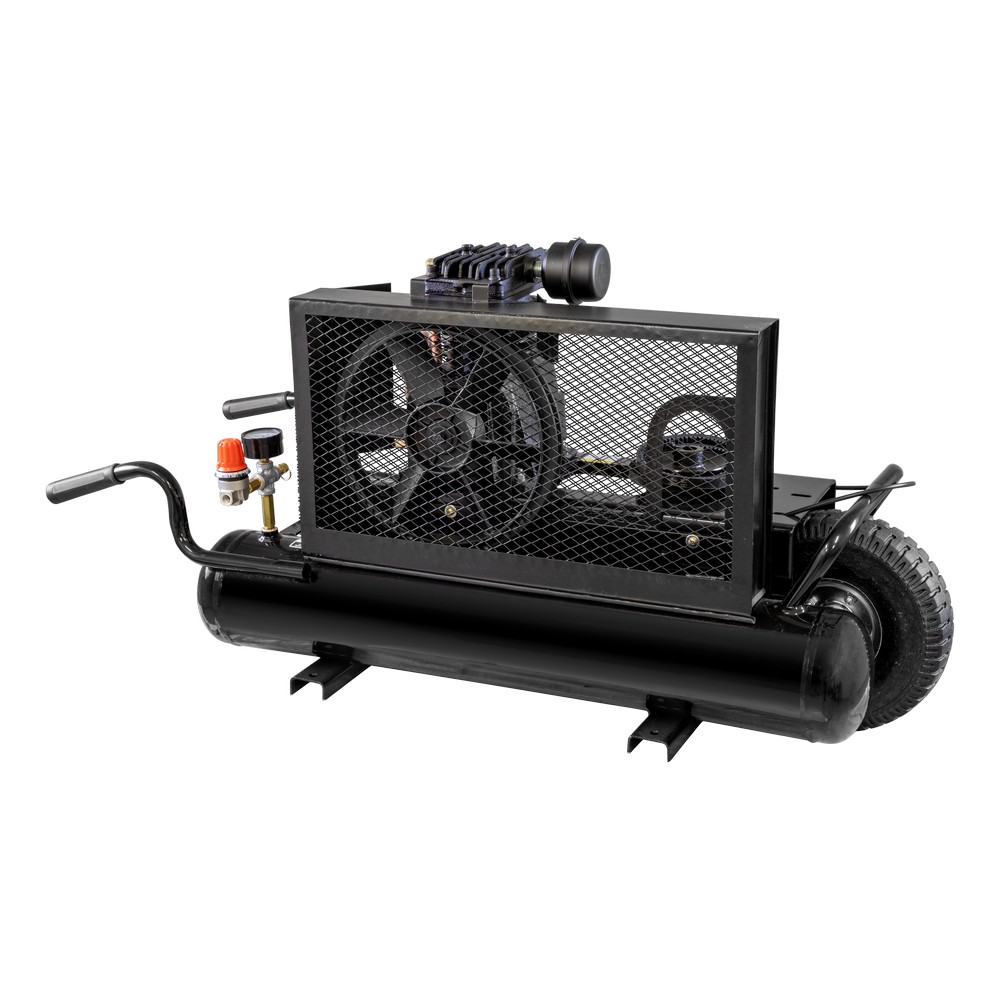

Bravo CSL 15BR/30 Air Compressor - 15 SCFM 30 liters 5,5 hp
Schulz
Code: 931.8125-0
Engine Type
Product codes
Technical File
Downloads
Technical File
Technical File
Technical File
Operation Regime
Continuous
Engine Type
Combustion
Power
5.5 hp - 4 kW
Air Displacement
15 SCFM - 424.8 L/min
Maximum Operating Pressure
140 psi - 9.7 bar
Minimum Operating Pressure
100 psi - 6.9 bar
Product's Rotation
1200 rpm
Number of Stages
1
Number of Pistons
2-L
Air Tank Volume
7.7 gallons
Lubricant Oil Volume
0.13 gallons
Lubricated or Oil Less
Lubricated
Length of Packaged Product
1,250.00 mm
Width of Packaged Product
560.00 mm
Height of Packaged Product
825.00 mm
Gross weight
100.10 kg
Net Weight
79.10 kg
