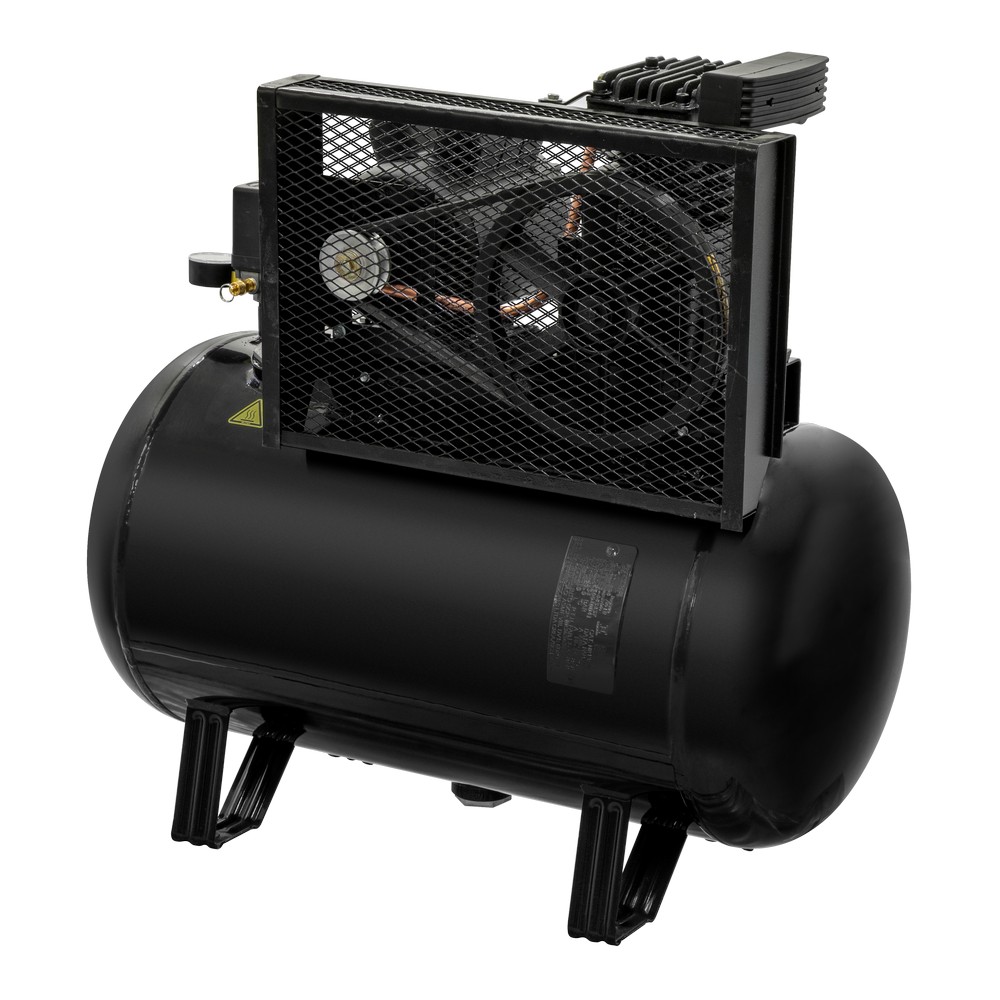

Bravo CSL 10BR/100 Air Compressor - 10 SCFM 100 liters 2 hp
Description
The Bravo Line is synonymous with robustness and technology for you to attain the highest results of performance. The 140 psi pressure offers greater power and versatility for technical and constant work. The cast iron pump ensures durability for professional and industrial applications. Choose the reliability of the Bravo Line.
Schulz
Code: 931.8050-0
Phase - Voltage
Frequency
Product codes
Technical File
Product description
Downloads
Technical File
Technical File
Technical File
Phase - Voltage
Single-phase - 220 V
Operation Regime
Intermittent
Engine Type
Open
Power
2 hp - 1.5 kW
Air Displacement
10 SCFM - 283 L/min
Maximum Operating Pressure
140 psi - 9.7 bar
Minimum Operating Pressure
100 psi - 6.9 bar
Frequency
60 Hz
Product's Rotation
860 rpm
Number of Stages
1
Number of Pistons
2-L
Air Tank Volume
24.4 gallons
Lubricant Oil Volume
0.13 gallons
Lubricated or Oil Less
Lubricated
Air Discharge Connection
1/4" NPT
Length of Packaged Product
970.00 mm
Width of Packaged Product
490.00 mm
Height of Packaged Product
985.00 mm
Gross weight
83.00 kg
Net Weight
69.00 kg
Product description
Product description
The Bravo Line is synonymous with robustness and technology for you to attain the highest results of performance. The 140 psi pressure offers greater power and versatility for technical and constant work. The cast iron pump ensures durability for professional and industrial applications. Choose the reliability of the Bravo Line.
Downloads
The Bravo Line is synonymous with robustness and technology for you to attain the highest results of performance. The 140 psi pressure offers greater power and versatility for technical and constant work. The cast iron pump ensures durability for professional and industrial applications. Choose the reliability of the Bravo Line.
