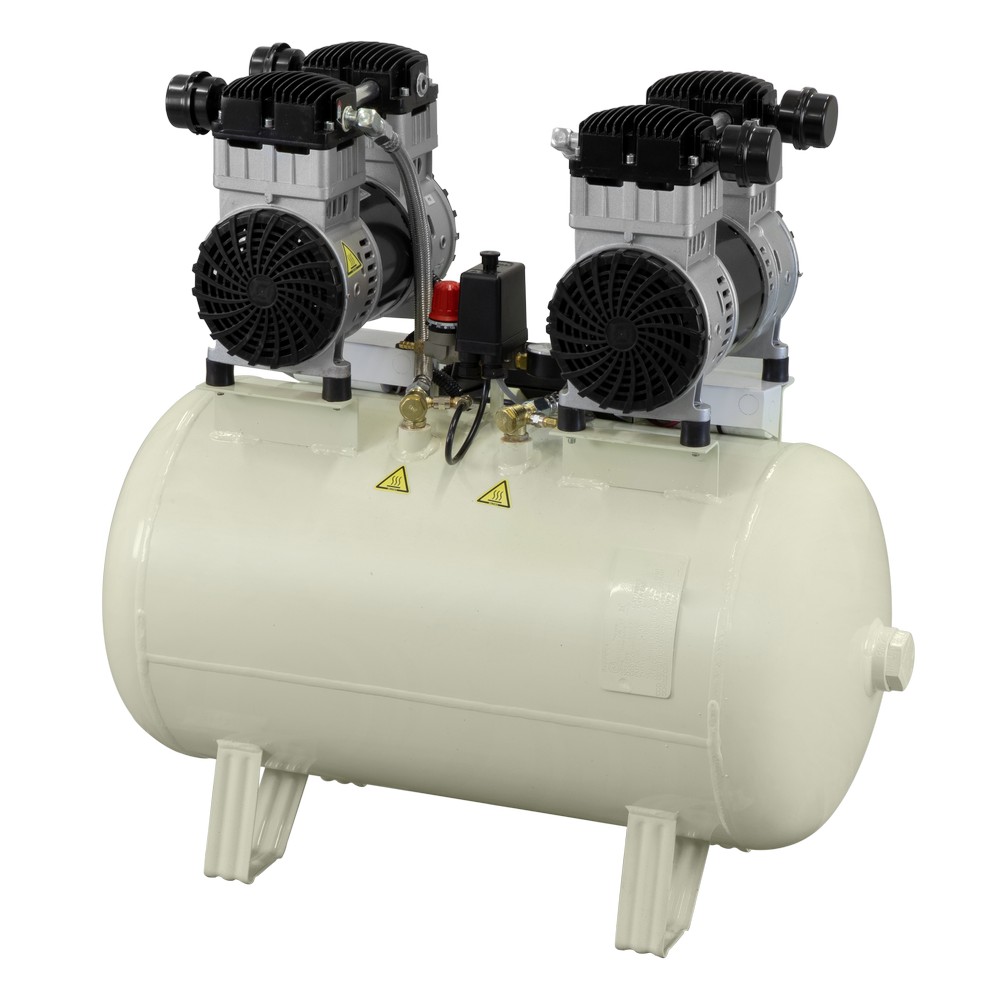

Oil Less Compressor CSD 18/100 - 18 SCFM 100 liters 3 hp
Description
The Oil Less direct drive compressors offer comfort and safety for medical-dental applications, etc. These products have a lower noise level and their air tanks have internal antibacterial painting. They are available in the models of 1, 1.5, 2, 3 and 4.5 hp. The compressors ensure durability and have the largest technical assistance network in Brazil.
Schulz
Code: 931.1318-0
Phase - Voltage
Product codes
Technical File
Product description
Downloads
Technical File
Technical File
Technical File
Phase - Voltage
Single phase - 127 V
Operation Regime
Intermittent
Engine Type
Open
Power
3 hp - 2.2 kW
Air Displacement
18 SCFM - 509.8 L/min
Maximum Operating Pressure
120 psi - 8.3 bar
Minimum Operating Pressure
80 psi - 5.5 bar
Frequency
60 Hz
Product's Rotation
1050 rpm
Number of Stages
1
Number of Pistons
2 x 2
Air Tank Volume
24.4 gallons
Lubricated or Oil Less
Oil Less
Length of Packaged Product
1,085.00 mm
Width of Packaged Product
590.00 mm
Height of Packaged Product
1,025.00 mm
Gross weight
99.50 kg
Net Weight
86.00 kg
Product description
Product description
The Oil Less direct drive compressors offer comfort and safety for medical-dental applications, etc. These products have a lower noise level and their air tanks have internal antibacterial painting. They are available in the models of 1, 1.5, 2, 3 and 4.5 hp. The compressors ensure durability and have the largest technical assistance network in Brazil.
Downloads
The Oil Less direct drive compressors offer comfort and safety for medical-dental applications, etc. These products have a lower noise level and their air tanks have internal antibacterial painting. They are available in the models of 1, 1.5, 2, 3 and 4.5 hp. The compressors ensure durability and have the largest technical assistance network in Brazil.
