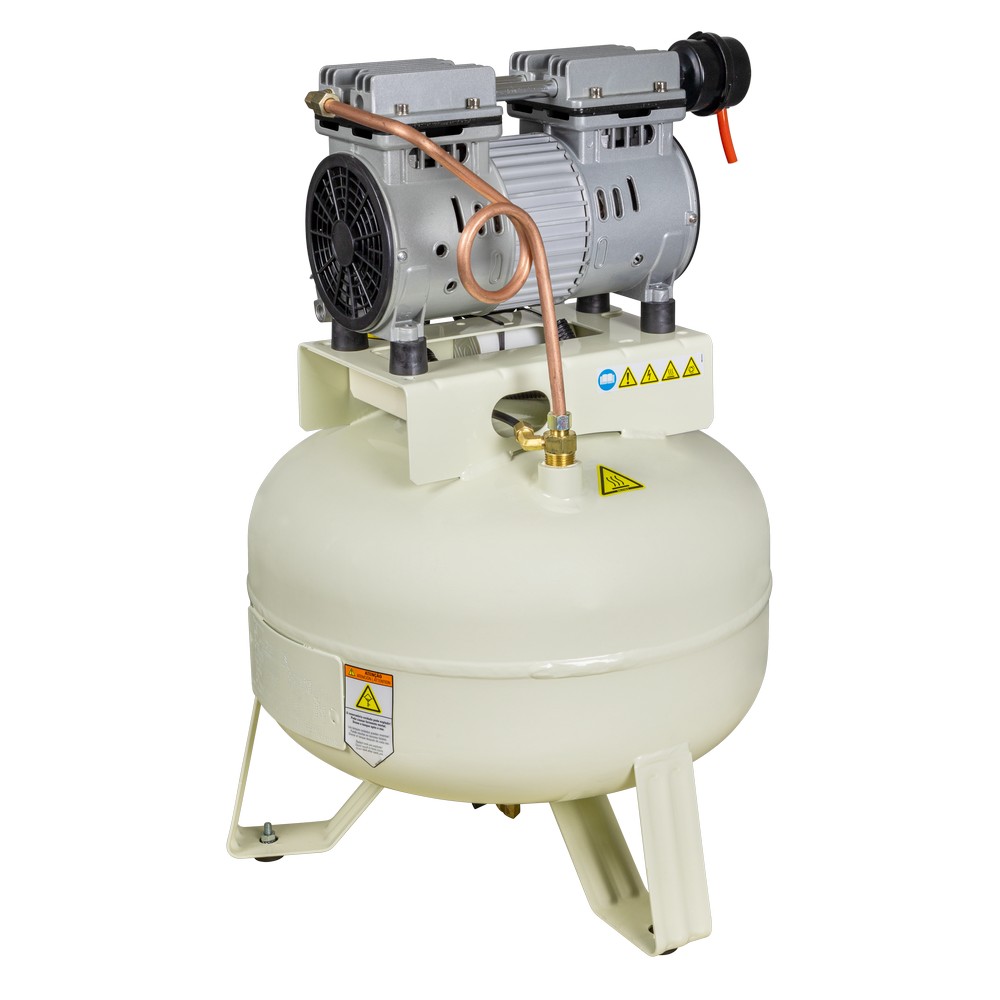

Oil Less Compressor CSD 5/30 - 5 SCFM 30 liters 1 hp
Description
The Oil Less direct drive compressors offer comfort and safety for medical-dental applications, etc. These products have a lower noise level and their air tanks have internal antibacterial painting. Available in 1, 1.5, 2, 3 and 4.5 hp models, the compressors ensure durability. Choose the best product to support your business.
Schulz
Code: 931.1300-0
Phase - Voltage
Product codes
Technical File
Product description
Downloads
Technical File
Technical File
Technical File
Phase - Voltage
Single-phase - 127 V
Operation Regime
Intermittent
Engine Type
Open
Power
1 hp - 0.75 kW
Air Displacement
5 SCFM - 141 L/min
Maximum Operating Pressure
120 psi - 8.3 bar
Minimum Operating Pressure
80 psi - 5.5 bar
Frequency
60 Hz
Product's Rotation
1680 rpm
Number of Stages
1
Number of Pistons
2-L
Air Tank Volume
24.4 gallons
Lubricated or Oil Less
Oil Less
Air Discharge Connection
1/4" NPT
Length of Packaged Product
1,060.00 mm
Width of Packaged Product
530.00 mm
Height of Packaged Product
790.00 mm
Gross weight
36.15 kg
Net Weight
27.15 kg
Product description
Product description
The Oil Less direct drive compressors offer comfort and safety for medical-dental applications, etc. These products have a lower noise level and their air tanks have internal antibacterial painting. Available in 1, 1.5, 2, 3 and 4.5 hp models, the compressors ensure durability. Choose the best product to support your business.
Downloads
The Oil Less direct drive compressors offer comfort and safety for medical-dental applications, etc. These products have a lower noise level and their air tanks have internal antibacterial painting. Available in 1, 1.5, 2, 3 and 4.5 hp models, the compressors ensure durability. Choose the best product to support your business.
