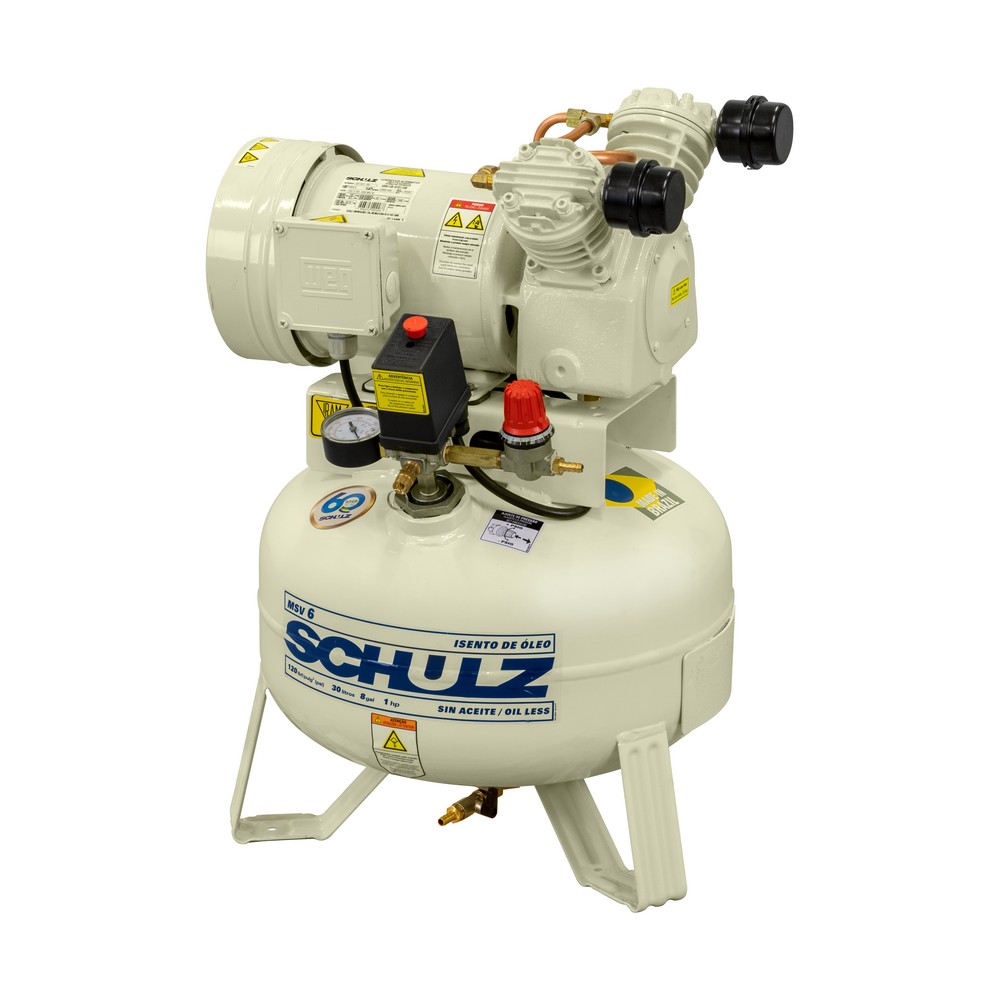

Oil Less Compressor MSV 6/30 - 6 SCFM 30 liters 1 hp
Description
The Oil Less compressors offer performance and safety for applications in clinics, offices or critical industrial processes. These products have greater performance and their air tanks have internal antibacterial painting. Available in the models of 3, 5, 10 and 15 hp, these compressors ensure durability and have the largest technical assistance network in Brazil. Choose the best product to support your business.
Schulz
Code: 931.1231-0/A
Phase - Voltage
Product codes
Technical File
Product description
Downloads
Technical File
Technical File
Technical File
Phase - Voltage
Single phase - 220 V
Operation Regime
Intermittent
Engine Type
Open
Power
1 hp - 0.75 kW
Air Displacement
6 SCFM - 170 L/min
Maximum Operating Pressure
120 psi - 8.3 bar
Minimum Operating Pressure
80 psi - 5.5 bar
Frequency
50 Hz
Product's Rotation
1445 rpm
Number of Stages
1
Number of Pistons
2-V
Air Tank Volume
24.4 gallons
Lubricated or Oil Less
Oil Less
Air Discharge Connection
1/4" NPT
Length of Packaged Product
1,060.00 mm
Width of Packaged Product
530.00 mm
Height of Packaged Product
790.00 mm
Gross weight
49.70 kg
Net Weight
40.70 kg
Product description
Product description
The Oil Less compressors offer performance and safety for applications in clinics, offices or critical industrial processes. These products have greater performance and their air tanks have internal antibacterial painting. Available in the models of 3, 5, 10 and 15 hp, these compressors ensure durability and have the largest technical assistance network in Brazil. Choose the best product to support your business.
