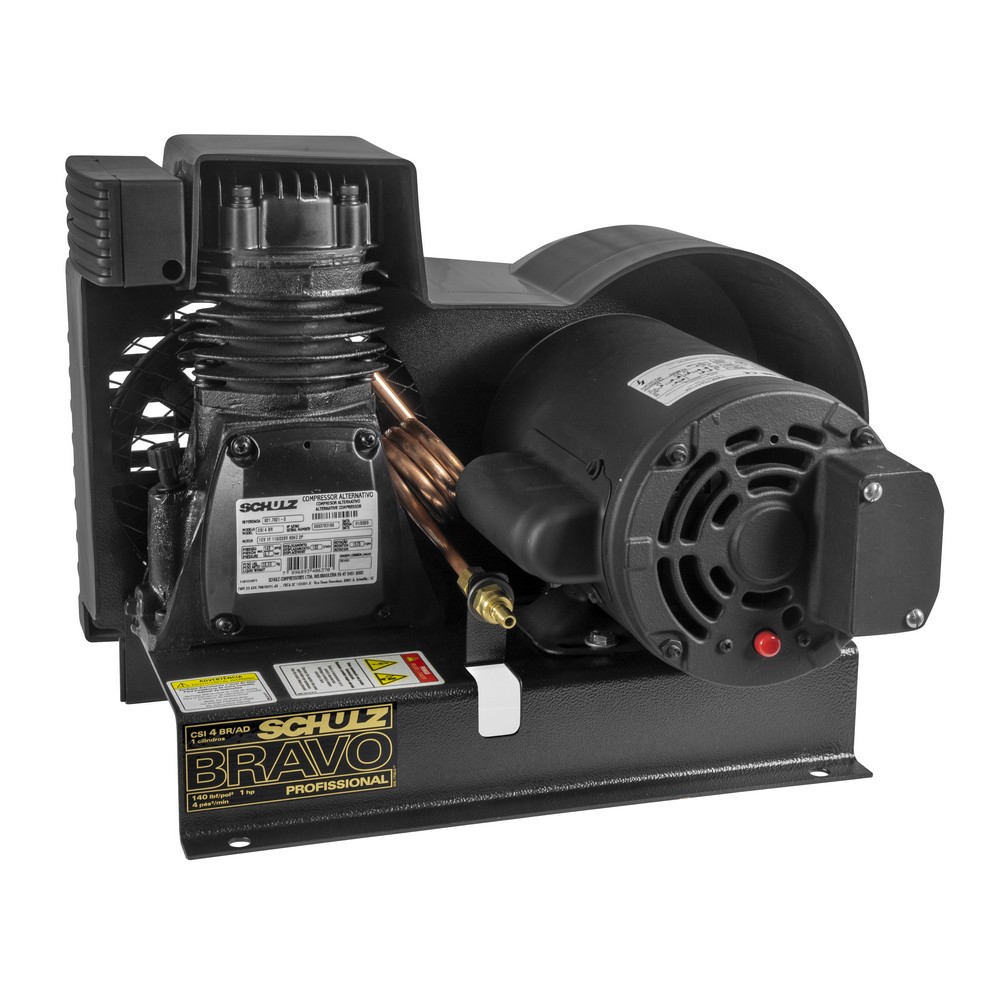

Bravo CSI 4BR/AD Air Compressor - 3,6 SCFM direct air 1 hp
Description
The Bravo CSI 4BR/AD direct air compressor guarantees practicality and savings for your daily routine. Compact and portable, this product is suitable for intensive use on rural properties, especially in artesian wells, or in applications where the user already has an air reservoir.
Schulz
Code: 921.7668-0/ME
Phase - Voltage
Product codes
Technical File
Product description
Technical File
Technical File
Technical File
Phase - Voltage
Single-phase - 127 V
Operation Regime
Continuous
Engine Type
Open
Power
1 hp - 0.75 kW
Air Displacement
3.6 SCFM - 102 L/min
Maximum Operating Pressure
140 psi - 9.7 bar
Frequency
60 Hz
Product's Rotation
1,575 rpm
Number of Stages
1
Number of Pistons
1
Lubricant Oil Volume
0.02 gallons
Lubricated or Oil Less
Lubricated
Air Discharge Connection
1/4" NPT
Length of Packaged Product
460.00 mm
Width of Packaged Product
360.00 mm
Height of Packaged Product
350.00 mm
Gross weight
21.50 kg
Net Weight
20.20 kg
Product description
Product description
The Bravo CSI 4BR/AD direct air compressor guarantees practicality and savings for your daily routine. Compact and portable, this product is suitable for intensive use on rural properties, especially in artesian wells, or in applications where the user already has an air reservoir.
Downloads
Downloads
The Bravo CSI 4BR/AD direct air compressor guarantees practicality and savings for your daily routine. Compact and portable, this product is suitable for intensive use on rural properties, especially in artesian wells, or in applications where the user already has an air reservoir.
