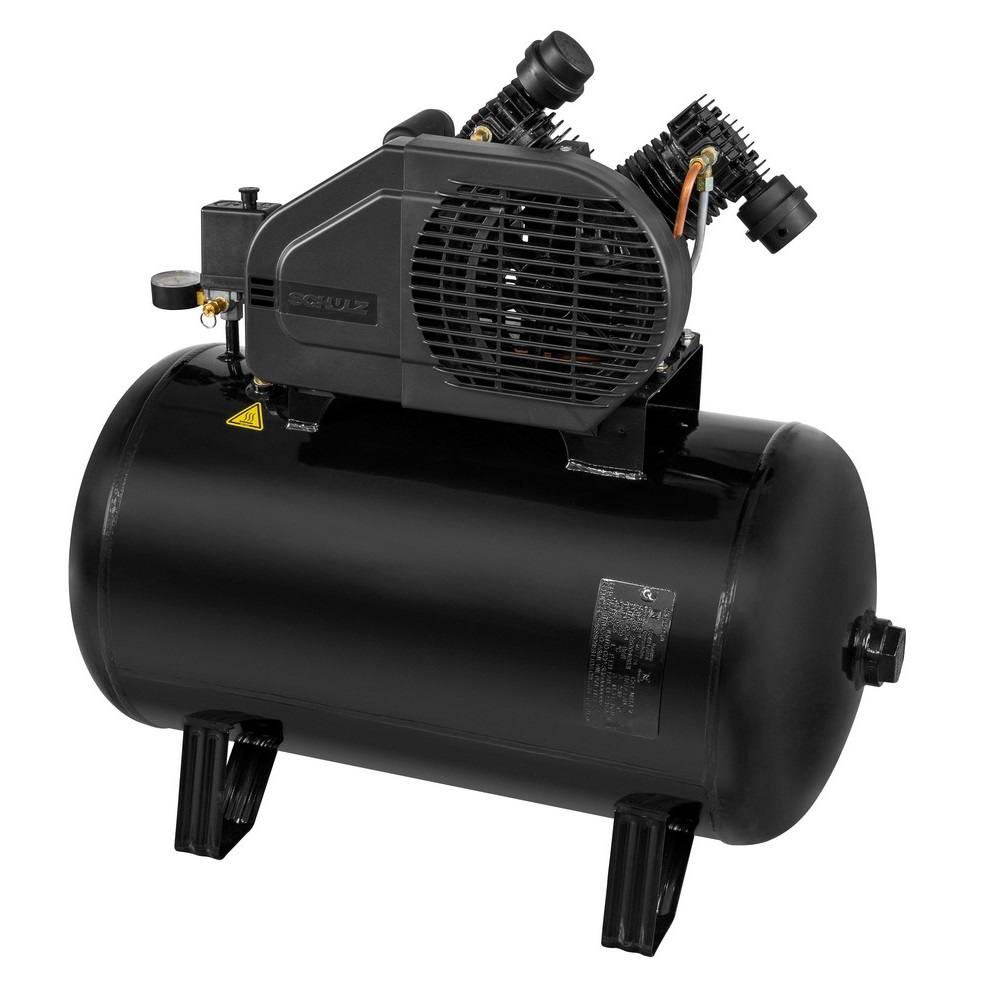

Pro CSV 10/100 Air Compressor - 10 SCFM 100 liters 2 hp
Description
Pro compressors ensure the success of your professional activity with performance and stability. Their pressure of 140 psi offers more power and versatility for technical and constant work.
Schulz
Code: 931.8113-0
Phase - Voltage
Product codes
Technical File
Product description
Downloads
Technical File
Technical File
Technical File
Phase - Voltage
Single-phase - 220 V
Operation Regime
Intermittent
Engine Type
Open
Power
2 hp - 1.5 kW
Air Displacement
10 SCFM - 283 L/min
Maximum Operating Pressure
140 psi - 9.7 bar
Minimum Operating Pressure
100 psi - 6.9 bar
Frequency
50 Hz
Product's Rotation
1900 rpm
Number of Stages
1
Number of Pistons
2-V
Air Tank Volume
24.4 gallons
Lubricant Oil Volume
0.09 gallons
Lubricated or Oil Less
Lubricated
Air Discharge Connection
1/4" NPT
Length of Packaged Product
970.00 mm
Width of Packaged Product
490.00 mm
Height of Packaged Product
985.00 mm
Gross weight
72.50 kg
Net Weight
58.50 kg
Product description
Product description
Pro compressors ensure the success of your professional activity with performance and stability. Their pressure of 140 psi offers more power and versatility for technical and constant work.
Downloads
Pro compressors ensure the success of your professional activity with performance and stability. Their pressure of 140 psi offers more power and versatility for technical and constant work.
